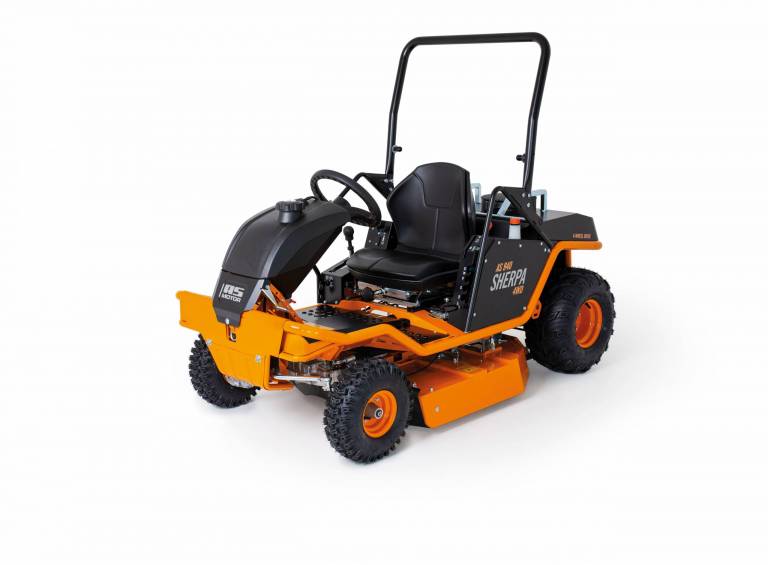

AS 940 Sherpa 4WD Loncin

Kategorije

High-grass, ride-on mower with permanent all-wheel drive

The AS 940 Sherpa 4WD is a robust, versatile ride-on mower for difficult terrain and high growth. The machine’s 2-cylinder Loncin engine with 708 ccm displacement, up to 21,7 hp and an oil and fuel pump achieve work rates reaching 5,500 m² per hour. Permanent all-wheel drive delivers better traction uphill and stronger, safer braking downhill. The limited slip differential can be activated at any time for more safety. Hydrostatic transmission is controlled exclusively via the drive lever, which controls forward and reverse movements as well as the brake and the parking brake. An additional brake pedal returns the drive lever to neutral and automatically engages the parking brake.

The professional 2-cylinder Loncin engine delivers a rated power of 21.2 hp with its 708 cm3. Equipped with the AS cross-blade system, the AS 940 Sherpa 4WD delivers impressive mulching results in grass and dense growth up to 1.5 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 50–105 cm and an option mulch kit is available for even finer mulching results.

Stability and comfort

With a highly stable tubular frame, the AS 940 Sherpa 4WD performs even under harsh conditions. Operators up to 1.9 tall can operate the machine comfortably thanks to a length-adjustable seat and seat spring package. A low centre of gravity, folding bar and branch deflectors are added safety features, while lashing points integrated in the frame enable secure transport.

The AS 940 Sherpa 4WD is engineered for continuous operation with two separate ventilation circuits for the engine and hydrostatic transmission. The engine takes in air from above and discharges it to the side, while the hydrostatic transmission takes air from the rear and discharges it downward. This system prevents overheating and ensures the machine’s long service life.

The AS-Motor all-wheel drive ride-on mowers in a new design

The all-wheel drive models of the AS-Motor Sherpa family will appear in a new design in the future. Visually, the new 2023 Sherpa 4WD models are even more attractive with a new paint finish, an additional front panel and the newly designed decals. But the new AS Sherpa 4WD high grass mowers also offer a number of technical innovations.

All all-wheel drive AS Motor Sherpa 2023 models will in future be fitted with anti-puncture tyre sealant as standard – downtimes due to flat tyres are now a thing of the past. The new fuel tank of the Sherpas offers more volume (17 litres), a larger tank opening and a level indicator as standard. The new locking mechanism of the foldable bar provides easier handling and makes the bar less susceptible to damage. There is also improved freedom of movement when operating the driving lever. In future, the protective cloth between the engine and the seat will no longer be elaborately riveted, but locked by robust magnets. Accessibility to the engine, for example when changing the oil, is significantly improved.

Product advantages

All-wheel drive (AS 940)

Permanent all-wheel drive ensures better traction uphill and stronger, safer braking downhill.

Surfing mulch-mower deck

Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.

Ergonomic sitting position provides excellent driving comfort

Length-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.

Stable tube frame

High stability and torsional rigidity with heavy load.

Optimal all-terrain mobility

Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.

Variable hydrostatic transmission (ride-on mower)

Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.

Stable, folding bar

Greater operator safety in the machine's limit area.

Excellent – German Design Award Winner 2023

The consistently sustainable product design of the powerful high grass mowers convinced the top-class jury of the German Design Award. In the citation it says: “The AS Sherpa 4WD was developed specifically for mowing tall grass meadows, which its striking functional design expresses perfectly. A compact ride-on mower reduced to the essentials for sustainable and ecologically oriented green maintenance.”

Detalji o proizvodu

product-image

AS mulching mower deck

Zatvorena, surfing košnica s sustavom poprečnih noževa i ležajno poduprtim noževima koji popuštaju preprekama.

product-image

Separate air cooling supply

Zasebno hlađenje motora zrakom i hidrostatski prijenos optimiziraju performanse.

product-image

Switchable limited slip differential

Ugodno aktiviranje diferencijala ograničenog klizanjem preko pedale za izvrstan pogon i vuču.

product-image

Stable, folding bar

Veća sigurnost operatera u graničnom području stroja.

Pribor

product-image

Uređaj za plašenje kukaca

AS-Motor uređaj za plašenje kukaca je inovativna priložba za košenje koja štiti oprašivače i malu divljač. Znanstveno testiran kako bi povećao stopu bijega kukaca, osigurava održivo košenje uz održavanje učinkovitosti. Dizajniran za izdržljivost, prilagodljivost i laku integraciju s profesionalnim kosačicama AS-Motor.

» nastavi čitati
product-image

Prikolica

Prostor za teret: D = 1071 mm, Š = 607 mm, visina ploče: 274 mm. Dopuštena ukupna težina: 100 kg. Stražnja ploča se može ukloniti.

product-image

Poteznica prikolice

For connecting the AS trailer.

product-image

Daska za snijeg

Width: 1107 mm, height: 348 mm. Adjustable on both sides.

product-image

Komplet za malčiranje – AS Sherpa

For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.

product-image

Lanci za snijeg

Cross-track chain for the drive wheels.

product-image

Dvostruke gume AS 65, AS 73, AS 84, AS701 SM

One pair (2x2) of rear twin tyres with extreme tread pattern for highest traction.

product-image

Nagibomjer

Pregledna prikaza nagiba.

product-image

Regulacijska ručka upravljača

Omogućuje upravljanje i manevriranje jednom rukom na ravnom terenu.
